Suitable for refrigeration, aquatic products and meat processing industries such as food quick freezing, fishing boats and fishery processing boats, etc.

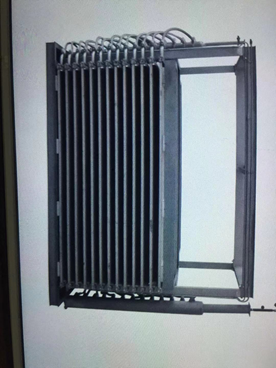

The device is composed of evaporation board, thermal storage body, hydraulic station, lifting cylinder and electronic control box.

The device has compact structure, clean and sanitary, and simple operation. The inner shelf and hardware of the reservoir are SUS304 high quality stainless steel evaporating plate 6063 Aluminium alloy, and the upper and lower pads are HDPE high density polyethylene. All the materials are corrosion-resistant, and keep the internal high cleanliness in line with European food hygiene standards for a long time.

Refrigerant Freon r22, r404a, r507a, ammonia R717 or related refrigerant carrier freeze loading temperature + 15 c, delivery center temperature - < 18 C ambient temperature 50 c, condensation temperature 35 - 40 c, evaporation temperature - 35 C.

Freezing time

Fish (fish dish size 600*400*80mm 15kg/dish): 4.5 hours/time

Shrimp (bottom dish size 300*200*60mm 2kg/dish): 2.5-3 hours/time

Cod (frame size 520*310*60mm 7.5kg/plate): 2.5-3 hours/time

Aquatic products, meat, food processing plants suitable for site Wu Lengyuan, or refrigerators, fishing boats that are inconvenient to link with existing cold sources, etc.

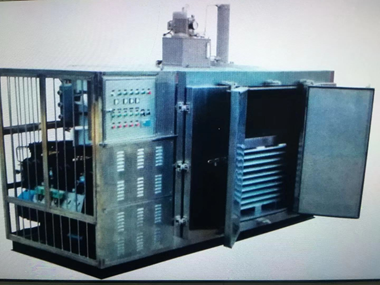

The device consists of heat preservation storehouse, evaporator, compression condensation unit, electronic control box and other components.。

The device has compact structure and simple operation. Polyurethane foam is used in the reservoir body: stainless steel sandwich insulation board is used in the reservoir body and door; SUS304 high quality stainless steel is used in the frame and hardware materials; 6063 Aluminium alloy is used in the evaporation plate; the compressor is imported from the original installation; and high efficiency heat exchange tube is used in the condensation.。Users only need to switch on the power supply, the water source can work.

Refrigerant Freon R22 R502 R404A r507a.

Frozen goods import temperature + 15 C shipment center temperature - 18 C

Ambient temperature 50 degree C

Freezing time

Fish (Predicted size 600*400*80mm 15kg/plate)

        Pdz type: 5 hours per time

       Gdz type: 7 hours per time

Shrimp (shrimp dish size 300*200*60mm 2kg/dish)

            Pdz type: 3 hours per time

           Gdz type: 5 hours per time
